Design and Implementation of Digital FIR and IIR Filters

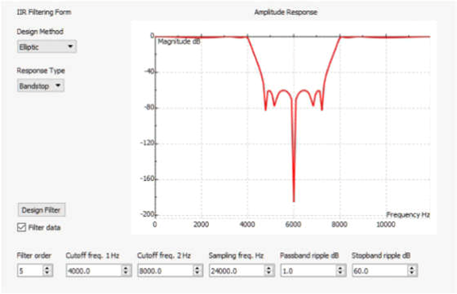

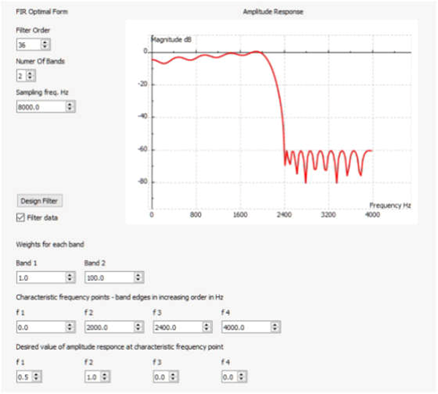

In digital signal processing, a digital filter is a system that performs mathematical operations on a discrete-time signal to either reduce or enhance certain aspects of that specific signal. For example, a digital filter can be used to attenuate noise, DC bias, etc. Furthermore, a digital filter can be used to extract the signal within a certain frequency range, which is one of the most important roles of frequency selective digital filters. There are two main categories of digital filters: the recursive filters otherwise known as infinite impulse response (IIR) filters, and the non-recursive filters otherwise known as finite impulse response (FIR) filters. The MatDeck software contains a variety of different functions and features for both IIR and FIR filter design and analysis.

Use of Templates for Filter Design

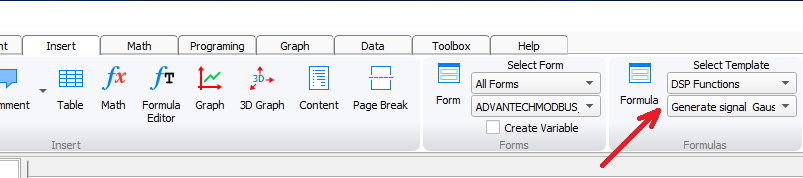

Templates enable sophisticated operations to be done in several clicks. Templates are pre-made chunks of code which can be inserted from Insert – Templates menu.

In many cases, the user will not need to change anything and the usable code is obtained and ready to be executed. In some cases, user might only need to change names or the position of variables.

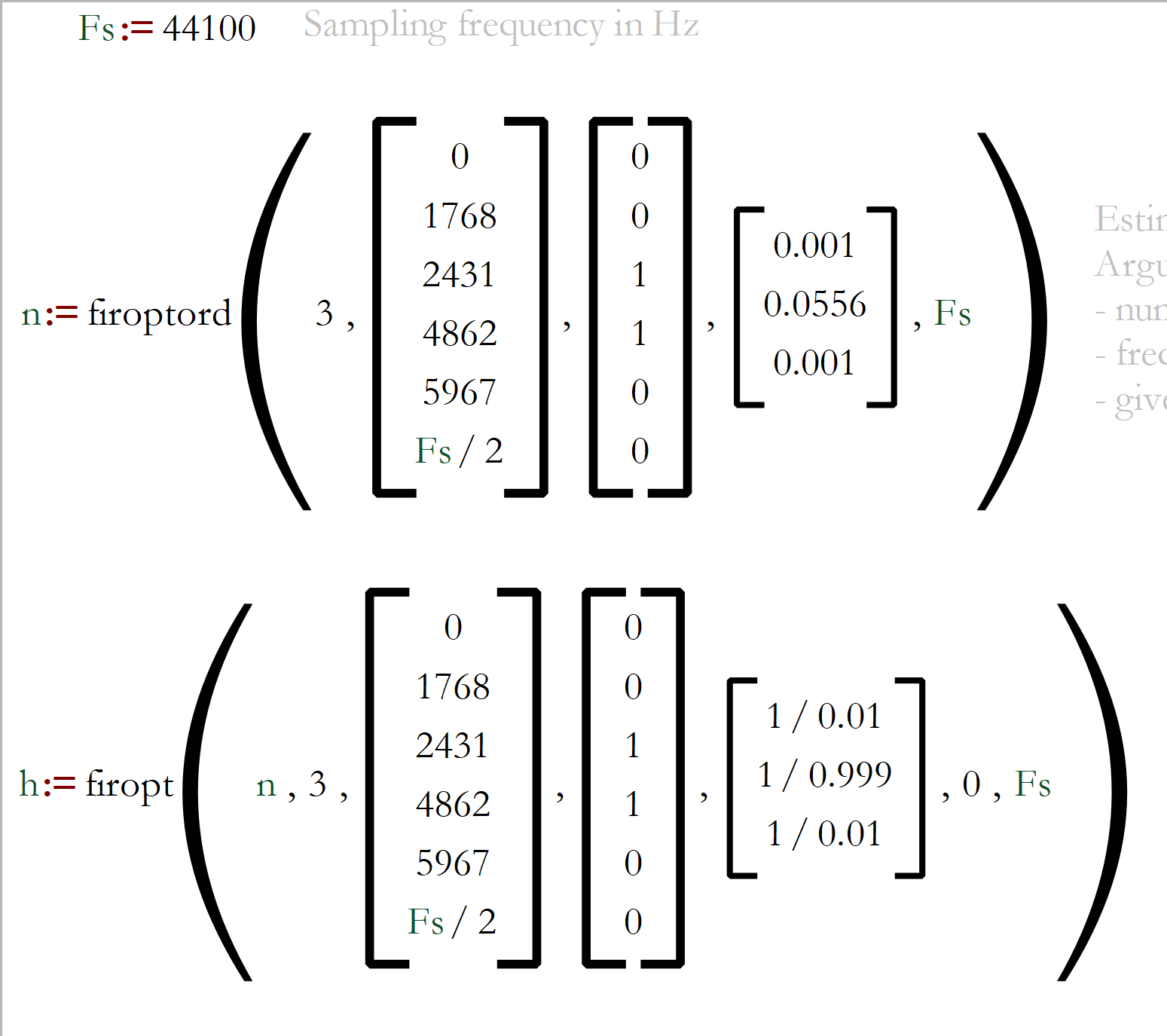

The portion of code below which designs a FIR filter and plots its characteristics, is obtained with two clicks. Users can then change the frequency points and arguments if needed.

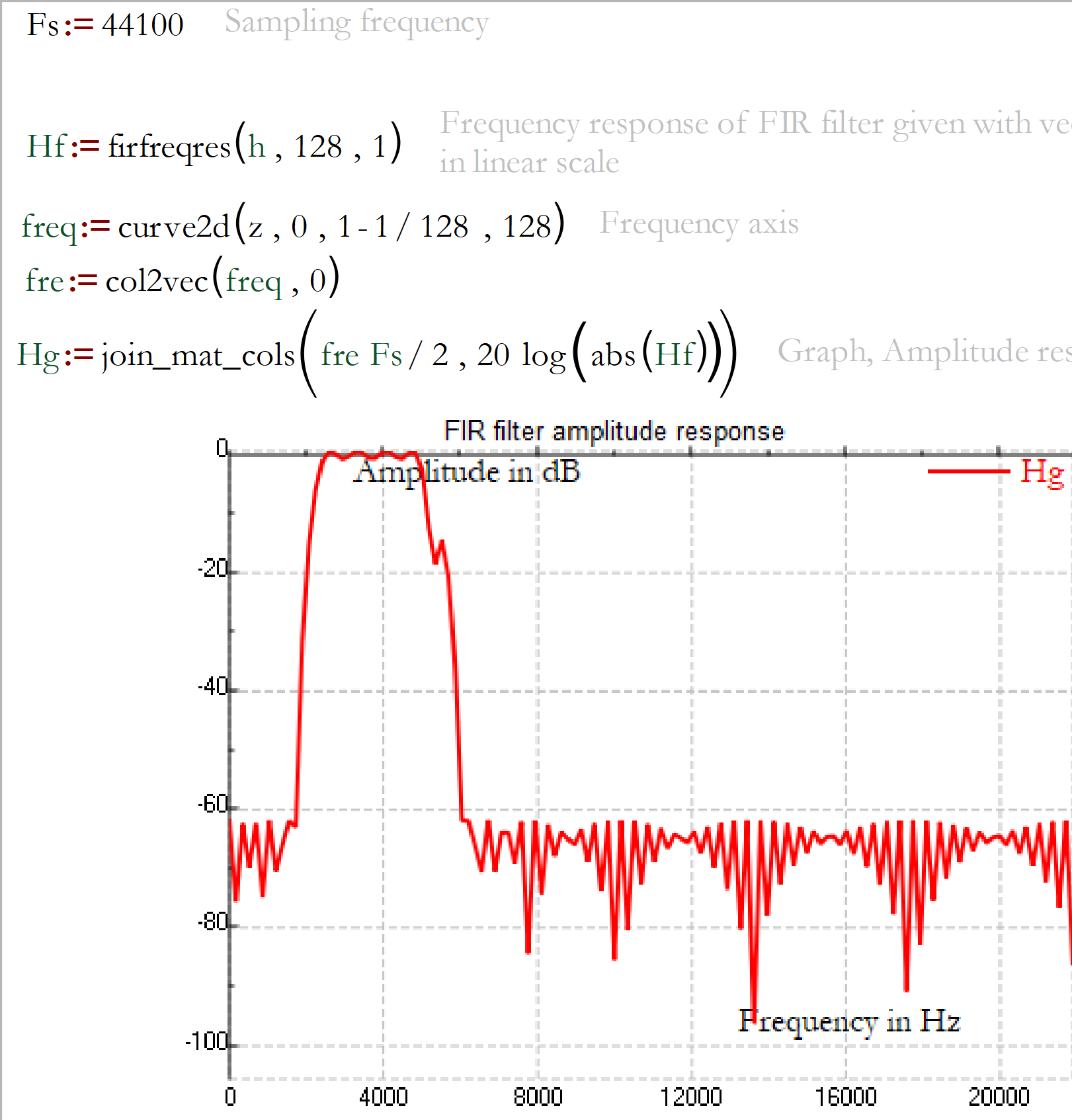

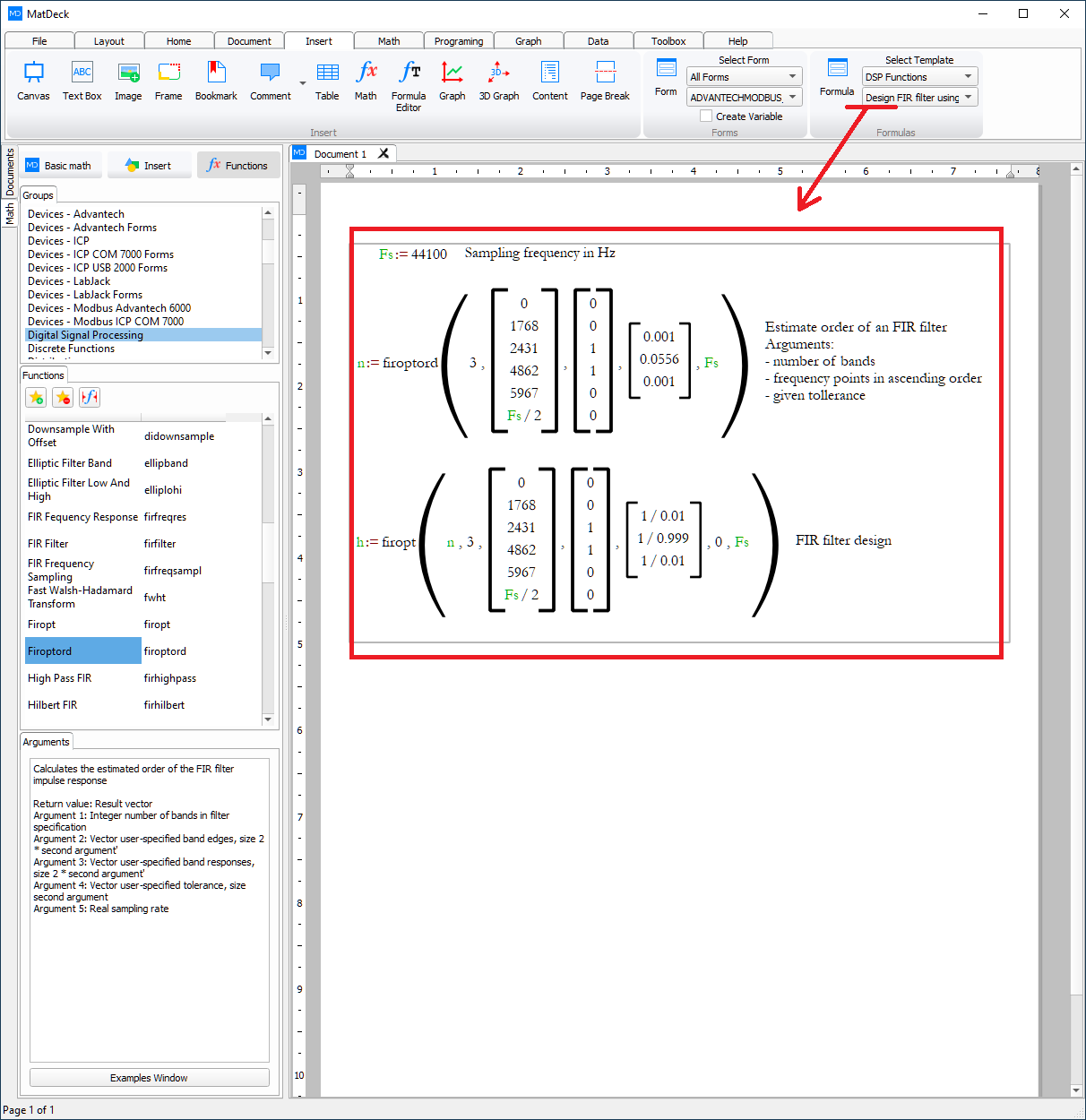

A ready-made DSP template functions screenshot below.
